Product Introduction

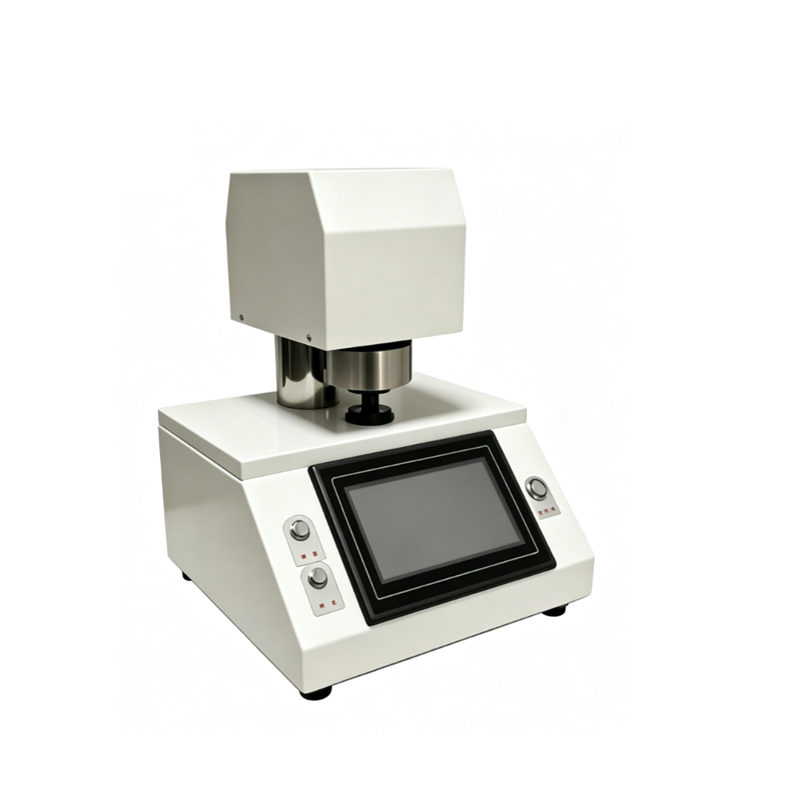

The Digital tissue thickness tester operates on the contact precision measurement principle. Under conditions of ultra-low contact pressure (2±0.1 kPa) and a standard large contact area (1000±5 mm²), a high-precision displacement sensor measures the distance between the upper and lower measuring anvils to accurately obtain the thickness of tissue paper, non-woven fabrics, and other ultra-thin soft materials. The device is equipped with a 5-inch touchscreen control system with adjustable descent speed from 0.5 to 10 mm/s, supporting both automatic continuous measurement and single measurement modes. Measurement data can be automatically statistically analyzed with bulk calculation, instantly printed via the built-in thermal printer, or transmitted to a computer through the RS232 interface. The integrated body structure and military-grade precision-ground measuring anvils ensure high accuracy and stability over long-term use.

Key Features
Ultra-Low Pressure Protects Specimens Contact pressure of only 2±0.1 kPa, specifically designed for soft, compressible materials like tissue paper and non-woven fabrics, preventing compression deformation and reflecting true material thickness.
0.001mm High Resolution Resolution of 0.001 mm, indication error ±0.003, indication variation ≤0.003, accurately capturing minute thickness variations.
Large Area Measuring Anvil Contact area of 1000±5 mm², complying with thickness measurement standards for tissue paper and other soft materials, providing more representative measurement results.
Military-Grade Precision Grinding Upper and lower measuring anvils processed with military-grade precision grinding technology, with measuring parallelism ≤0.004 mm, ensuring long-term measurement accuracy stability.
Integrated Stable Structure The instrument body adopts an integrated structural design, fully ensuring dimensional stability to withstand high-frequency, long-term use.
Automatic Continuous Measurement Supports both automatic continuous measurement and single measurement modes, with automatic statistics and bulk calculation, improving batch testing efficiency.
Touchscreen with Bilingual Interface 5-inch touchscreen control supporting both Chinese and English interfaces for intuitive and convenient operation.
Data Storage and Output Standard data saving function, built-in modular thermal printer, RS232 communication interface (USB/WiFi optional), facilitating data management and report output.

Main Technical Specifications

FAQ
1. What is the main difference between a tissue thickness tester and a standard paperboard thickness tester?
The tissue thickness tester uses ultra-low measuring pressure (2±0.1 kPa) and a large contact area (1000±5 mm²), specifically designed for soft, easily compressible tissue paper and non-woven fabrics. Standard paperboard testers typically use 100 kPa or higher pressure, which would severely compress tissue paper, resulting in distorted, artificially low measurements.

2. How is the bulk calculation function used?
The instrument has a built-in bulk calculation program. After entering the specimen's grammage (basis weight), the system automatically calculates and displays the bulk based on the measured thickness. This function simplifies the testing process for tissue paper bulk determination.

3. How does the automatic continuous measurement mode work?
In automatic continuous measurement mode, the user only needs to place the specimen, and the instrument automatically completes the entire descent, measurement, and lifting process without the need for manual key operation for each test. After testing, it automatically calculates statistics such as average and standard deviation, suitable for rapid batch sample testing.

4. How can data be exported and printed?
The instrument has a built-in modular thermal printer for direct printing of test reports. It is equipped with a standard RS232 communication interface for data transmission to a computer via cable. USB and WiFi interfaces are available as optional functions.

5. How should the descent speed be set? Does speed affect measurements?
Descent speed is adjustable from 0.5 to 10 mm/s. Slower speeds further reduce the impact when the measuring head contacts the specimen; lower speeds are recommended for extremely soft materials. Standard tests can set appropriate speed parameters based on material characteristics.

6. How should the measuring anvils be cleaned and maintained?
Gently wipe the surfaces of the upper and lower measuring anvils with a soft cloth or brush to keep them clean and dust-free. Avoid using hard tools to scrape the measuring surfaces, as scratches can affect measurement accuracy. Periodically verify measurement accuracy with standard gauge blocks.
